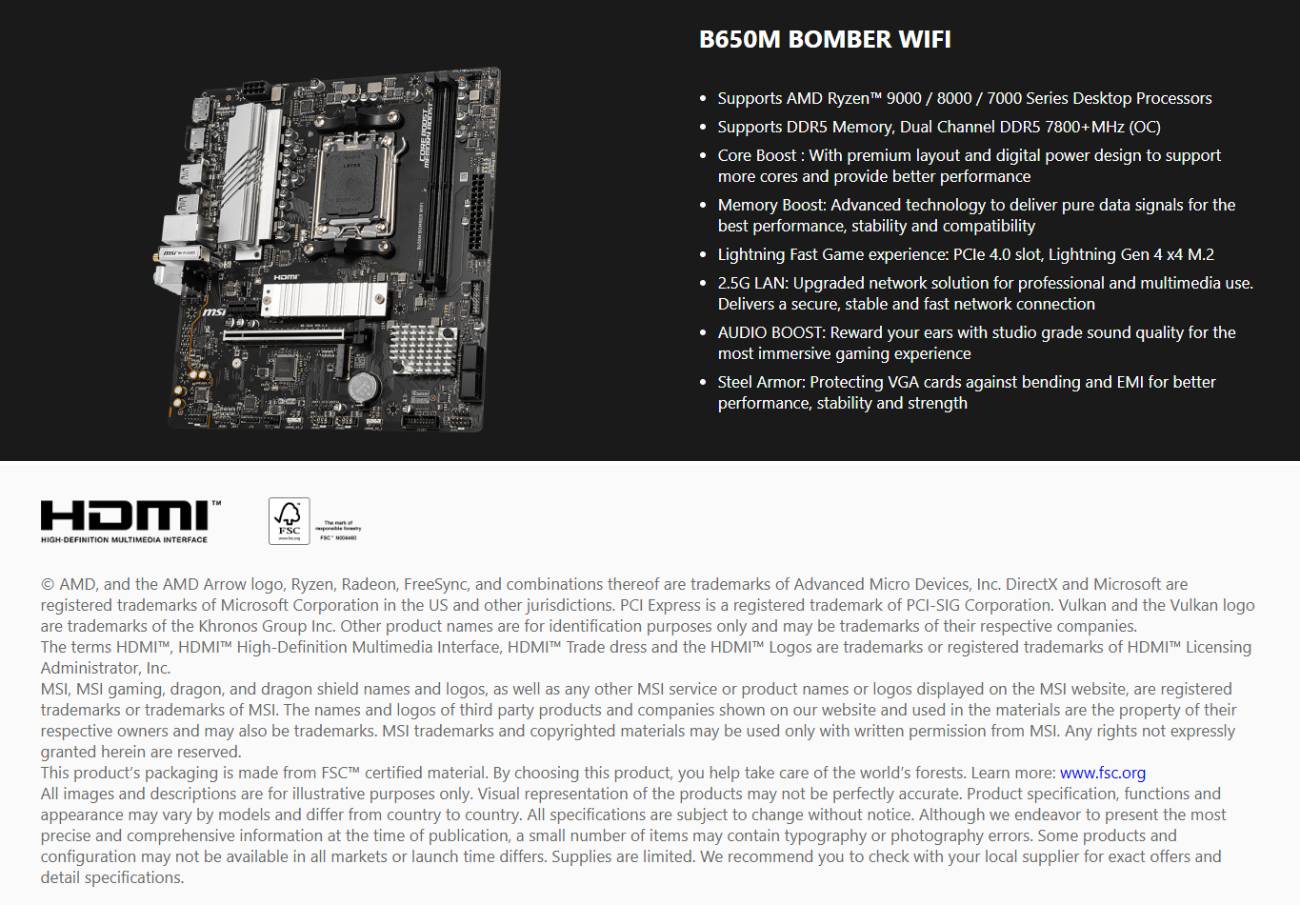

Enhance your gaming and productivity with the MSI B650M BOMBER WIFI mATX Motherboard. Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series processors and supporting blazing-fast DDR5 memory up to 7800+MHz (OC), this motherboard ensures top-tier performance. Experience superior audio with AUDIO BOOST technology and enjoy a stable network with 2.5G LAN. Built with Steel Armor for added strength, it’s perfect for gamers and professionals seeking reliability. Fast dispatch available!
Quick Specifications
Manufacturer Specifications
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7800+ MT/s | |
| • 1DPC 2R Max speed up to 6400+ MT/s | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO™ | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| Supports x16/x1 | |
| • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices | |
| 4x SATA 6G | |
| • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 3x USB 5Gbps Type A (Rear) | |
| 1x USB 5Gbps Type C (Rear) | |
| 4x USB 5Gbps Type A (Front) | |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3** | |
| * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. | |
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. | |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort |
| HDMI™ | |
| Flash BIOS Button | |
| USB 5Gbps Type-A | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| USB 5Gbps Type-C | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT | |
| PCB Info | mATX |
| 226mmx243.84mm | |
